AsRock | 90-MXBRT0-A0UAYZ

Name: AsRock | 90-MXBRT0-A0UAYZ
SKU: 4711581490314
Price: 192.95 EUR
Availability: InStock

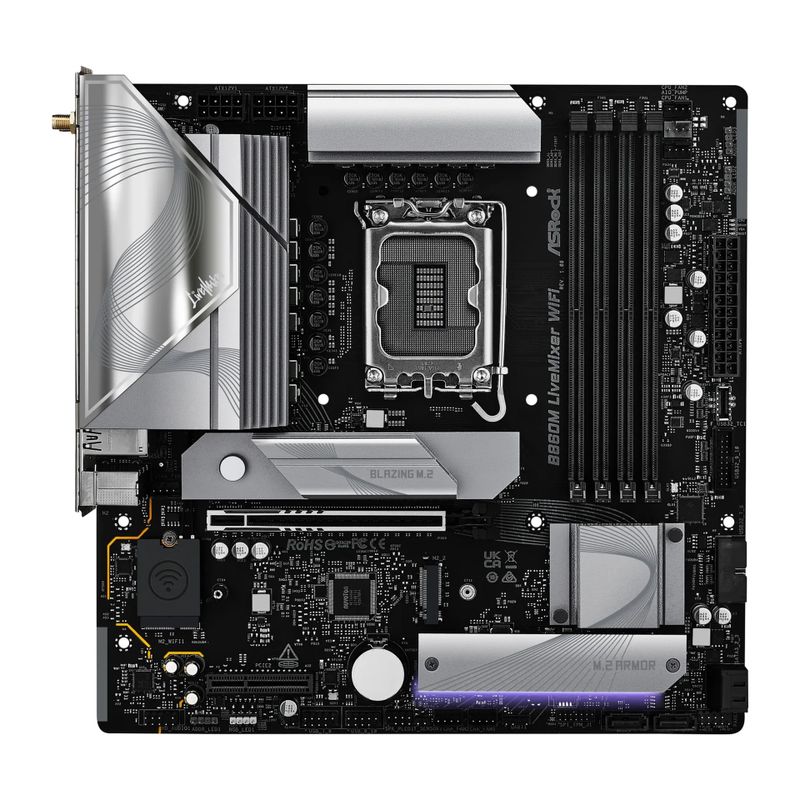

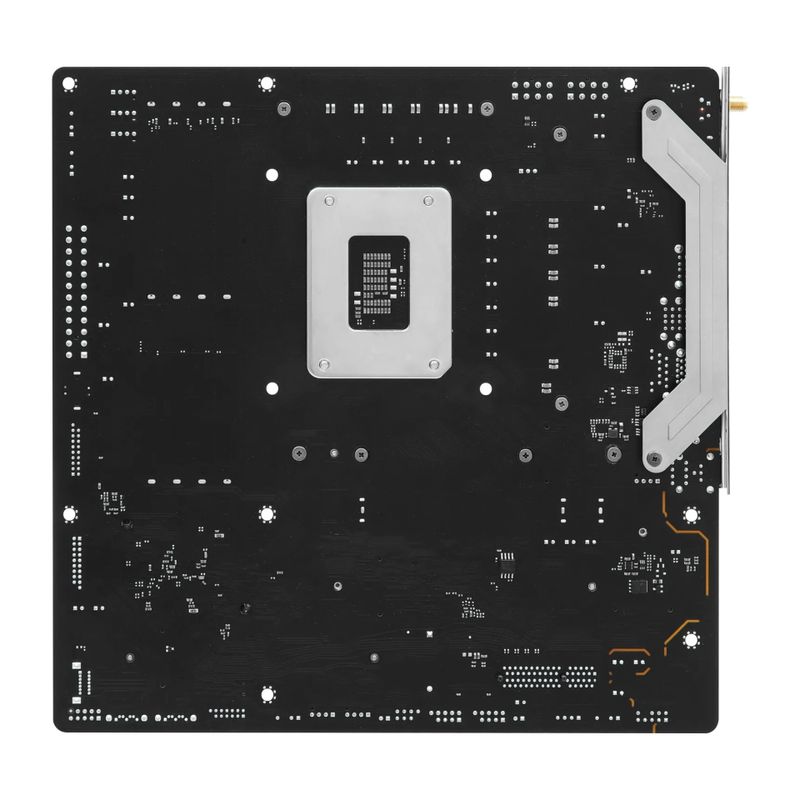

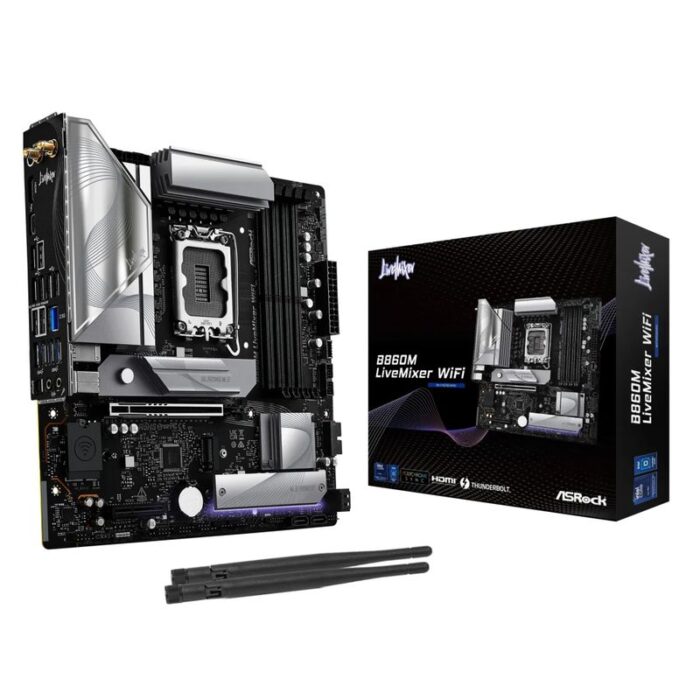

ASRock B860M LiveMixer WiFi – motherboard – micro ATX – LGA1851 Socket – B860

€192.95 incl. BTW

Op voorraad

Extra informatie

Gewicht	298 g
Afmetingen	298 × 268 × 1620 cm
Fabrikant	AsRock
Fabrikantcode	90-MXBRT0-A0UAYZ
Vormfactor	Micro ATX
Geheugen ondersteuning	DDR5 SDRAM
Chipset	Intel B860
EAN	4711581490314
WEEE	DE46285170
Aansluitingen intern	1 x USB-C 3.2 Gen 1 – header, 1 x audio – header, 4 x USB 2.0 – header, 4 x USB

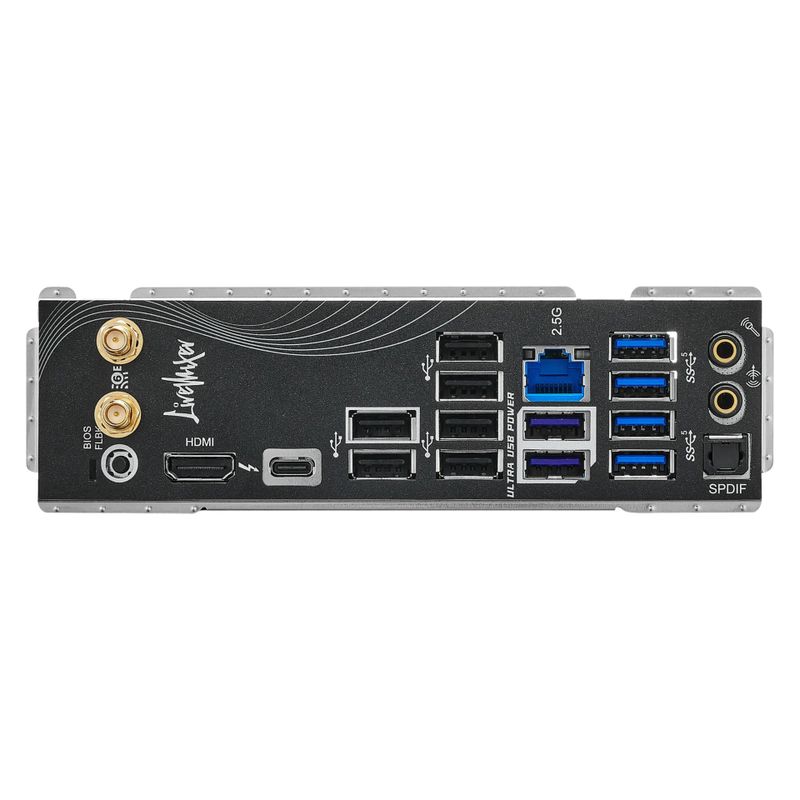

USB	1 x USB4 + 6 x USB 3.2 Gen 1 + 6 x USB 2.0
Maximum intern geheugen	256 GB
Processor socket	LGA1851 Socket
Ondersteunde geheugen types	DDR5 SDRAM
Aantal geheugenslots	4 DIMM slots
Ondersteunende Buffer	Unbuffered, Clocked unbuffered
RAID ondersteuning	PCIe 4.0 -connectors: 2 x Hyper M.2, PCIe 5.0 -connectors: 1 x Blazing M.2, SATA-600 -connectors: 4 x 7pin Serial ATA –
Sata	Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID)
Grafische ondersteuning CPU	Graphics adapter (CPU required)
Audio:	Realtek ALC1220
Audio kanalen	High Definition Audio (8-channel)
Audio Codec:	Realtek ALC1220
Netwerk	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E),
Netwerk controller	Dragon RTL8125BG
Netwerksnelheid	2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Software:	ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning
Afmeting breedte	24,4 cm
Afmeting diepte	24,4 cm
Power Connection	24-pin main power connector, 2 x 8-pin ATX12V connectors
Garantie	2 Jaar
